Towers

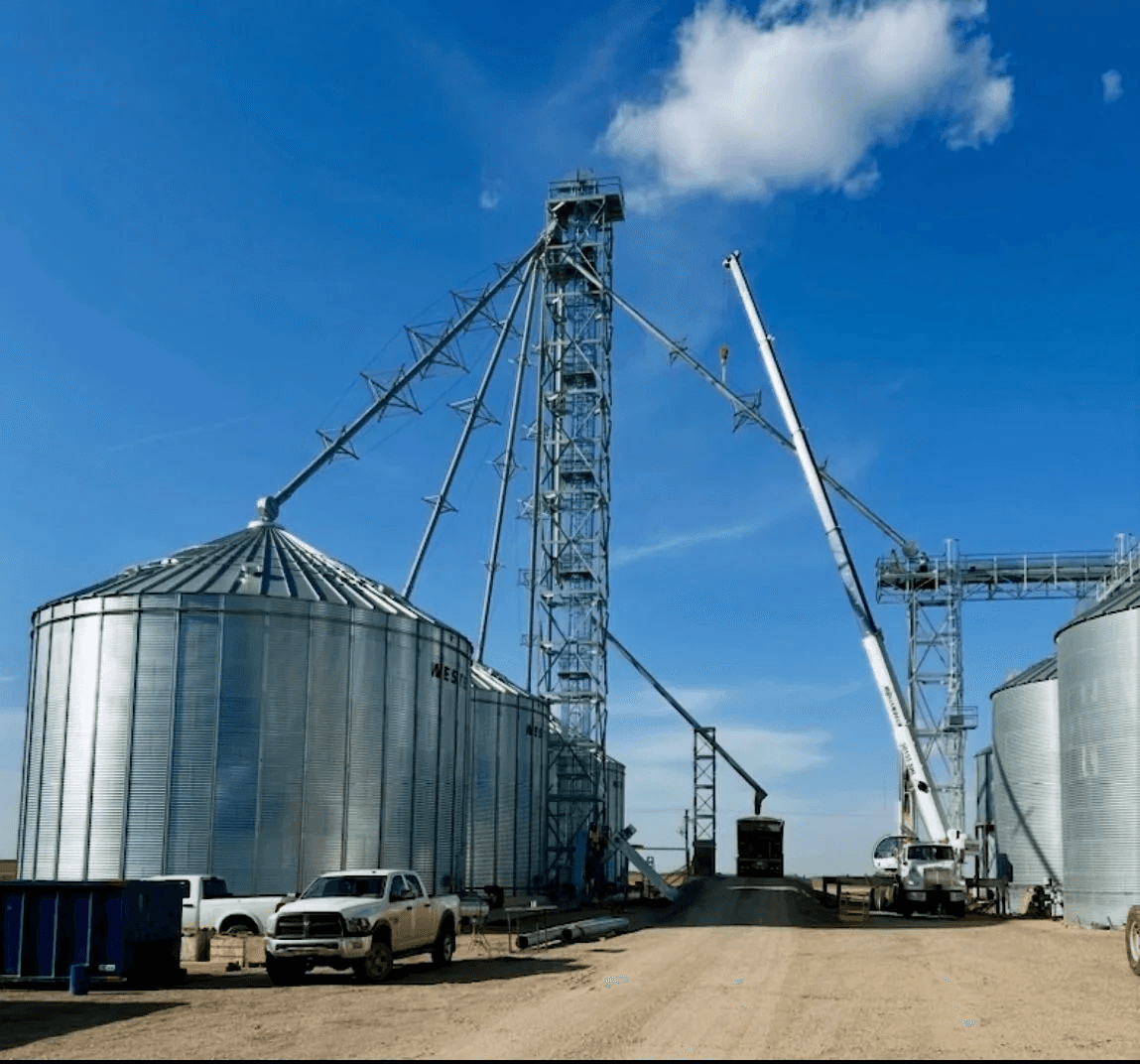

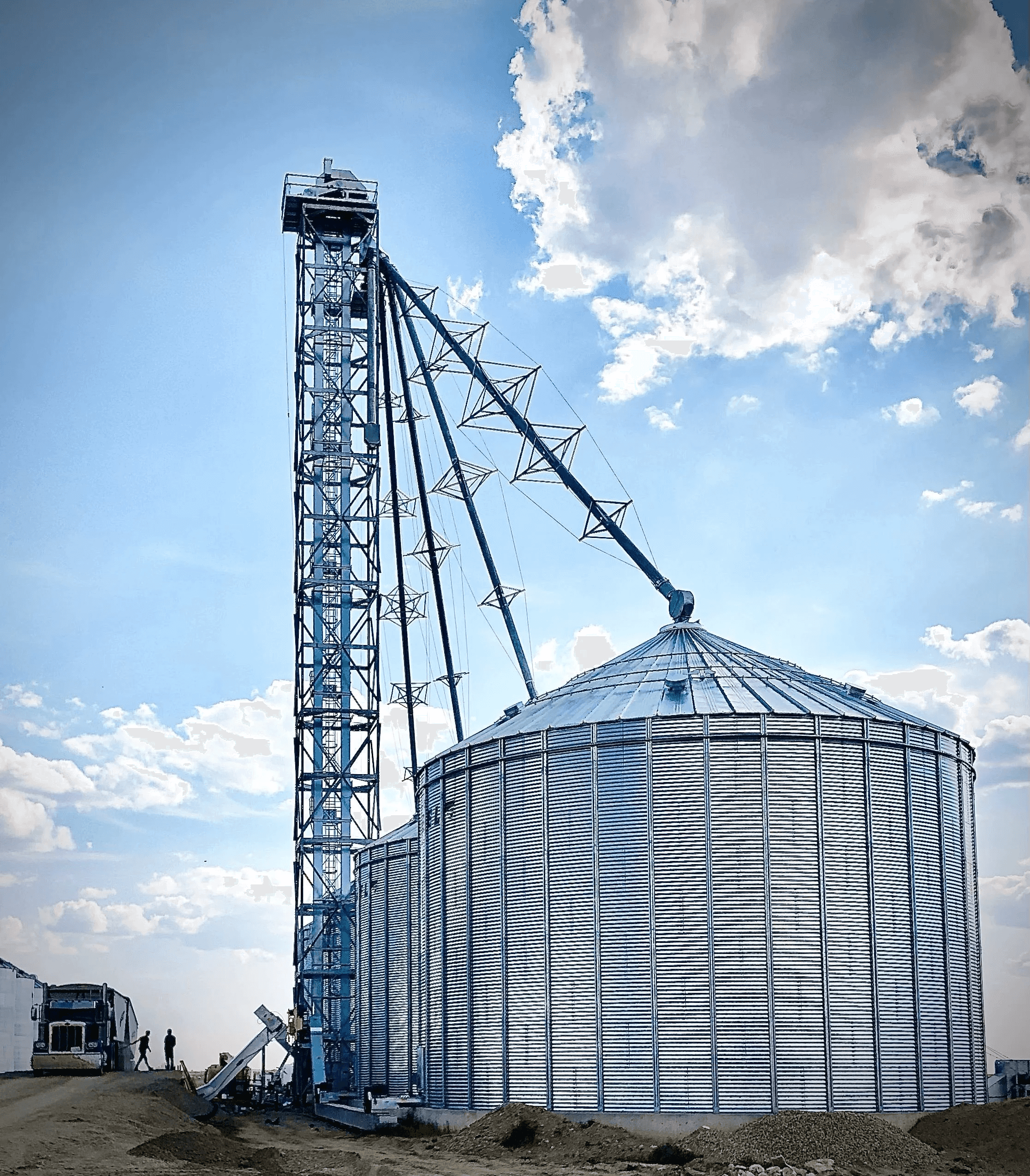

Bucket elevator tower with spouting
A tall RapiTower grain leg tower feeding new bins through spouting.
RapiTower & RapiTruss
One system of common pieces. Any tower, platform or catwalk.
RapiTower and RapiTruss use a simple, robust kit of common structural pieces to configure the tower, platform or catwalk your grain or seed storage system needs.
Developed by Griffin Ag, RapiSYSTEMS is a fully bolted arrangement of common structural steel elements that keeps the number of unique pieces to a minimum. That practically eliminates welding from a bin access project, so you can add a catwalk or conveyor system to an existing bin setup without specialized custom structure or long fabrication and install times.
How the bolted system works
- Years in agricultural construction
- 20+
- Tower heights available, in 5 ft increments
- 160 ft
- Catwalk runs, with supports almost anywhere
- 400 ft
- Bin diameters spanned
- 90 ft
Sizes from the RapiSYSTEMS brochure. See specifications.
Why RapiSYSTEMS
Galvanized
Maximum durability and corrosion resistance.
Bolt together
Faster installation, lower labour costs, no welding required.
Various widths
Multiple size options to fit your needs.
Fully customizable
Designed for your unique site and system requirements.
Made in the Prairie Provinces
Supporting Canadian jobs and agriculture.
Shipped Canada wide
From the prairies to your farm, coast to coast.

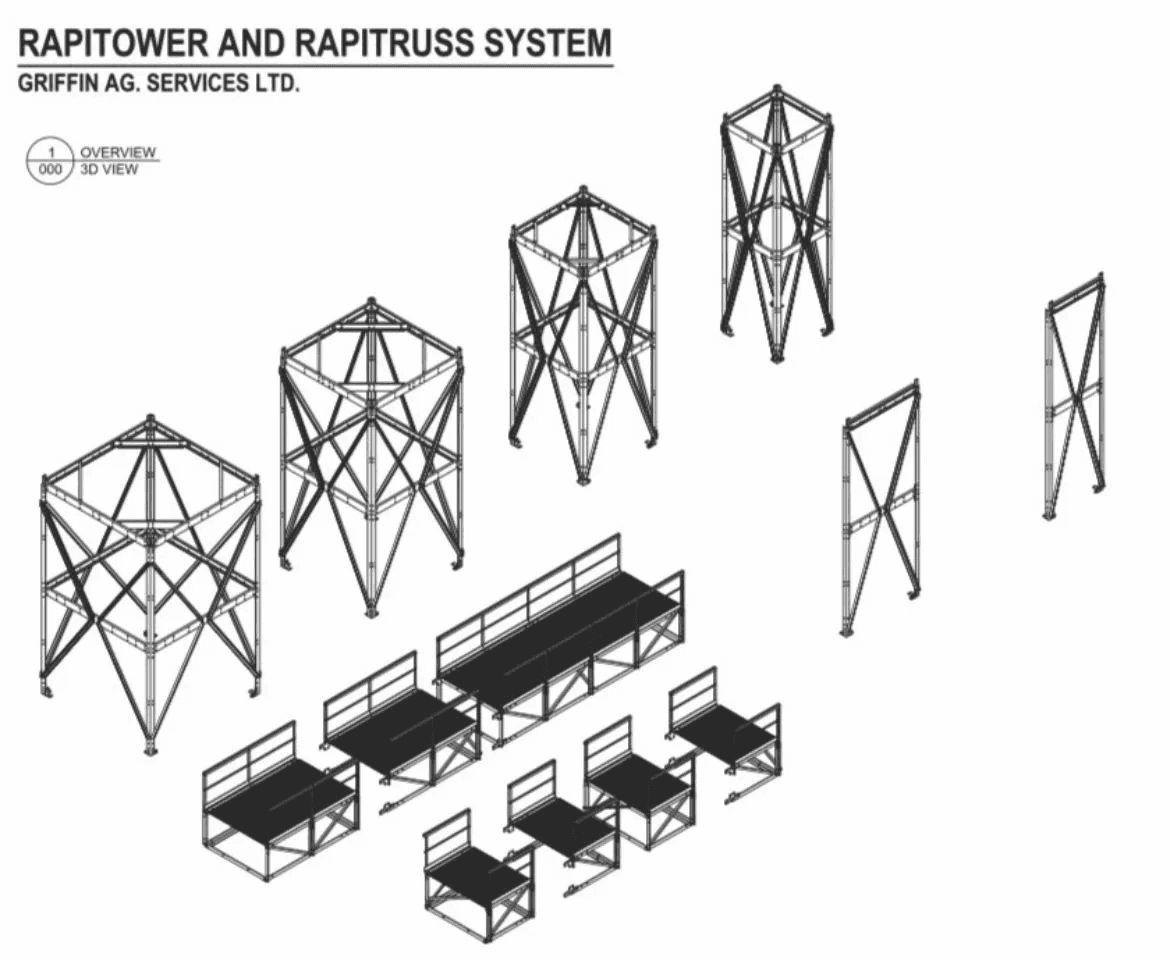

Four structures. One bolted system.

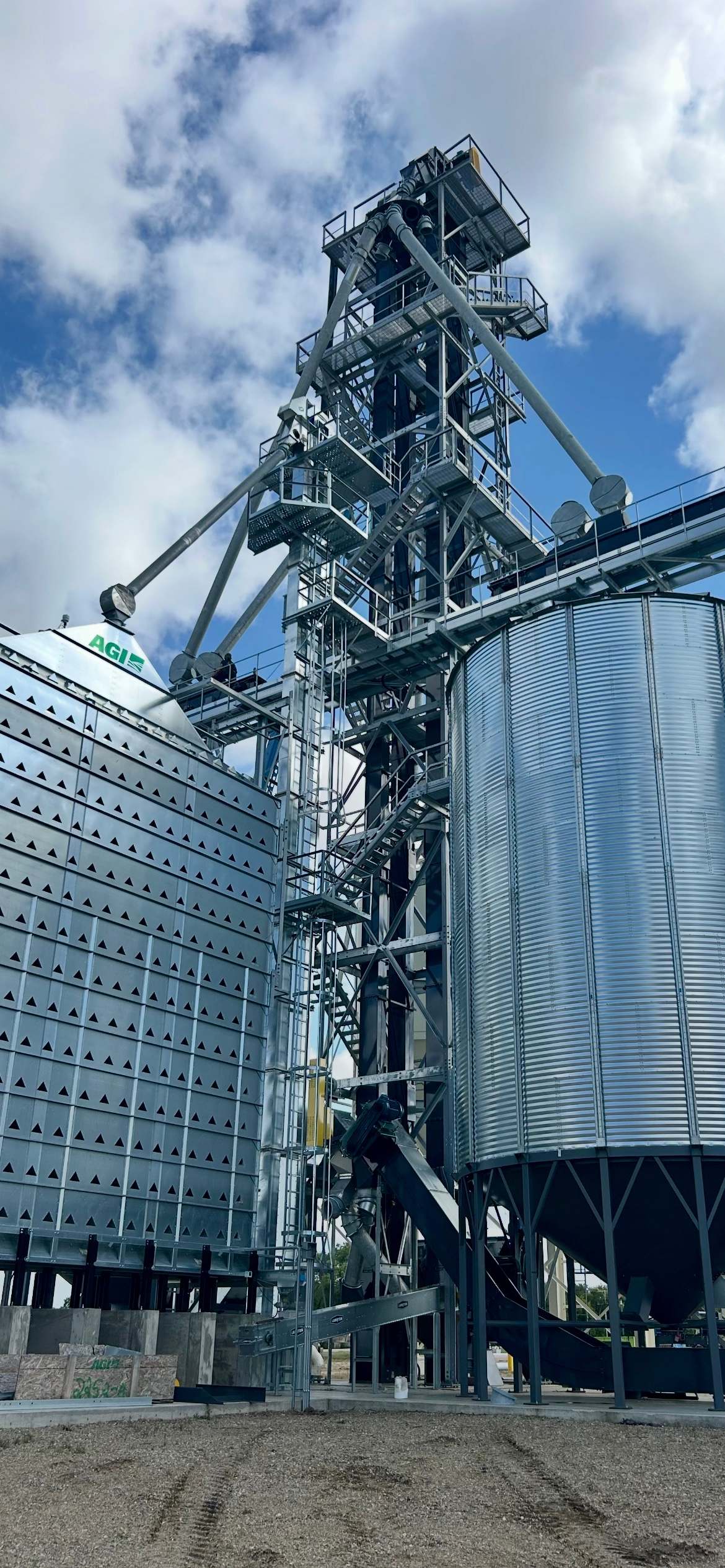

Bucket Elevator Support Towers
Square RapiTower grain leg towers that carry the bucket elevator, head section and spouting.
2-Post Towers
Lighter bolted frames that support catwalks, conveyors and spouting between bins.
Wrap-Around Stairs
Stairs that wrap a RapiTower for safe access to the head section and catwalks.
Catwalk Systems
RapiTruss catwalks for safe, continuous access and conveyor support across your bins.
See a RapiSYSTEMS build

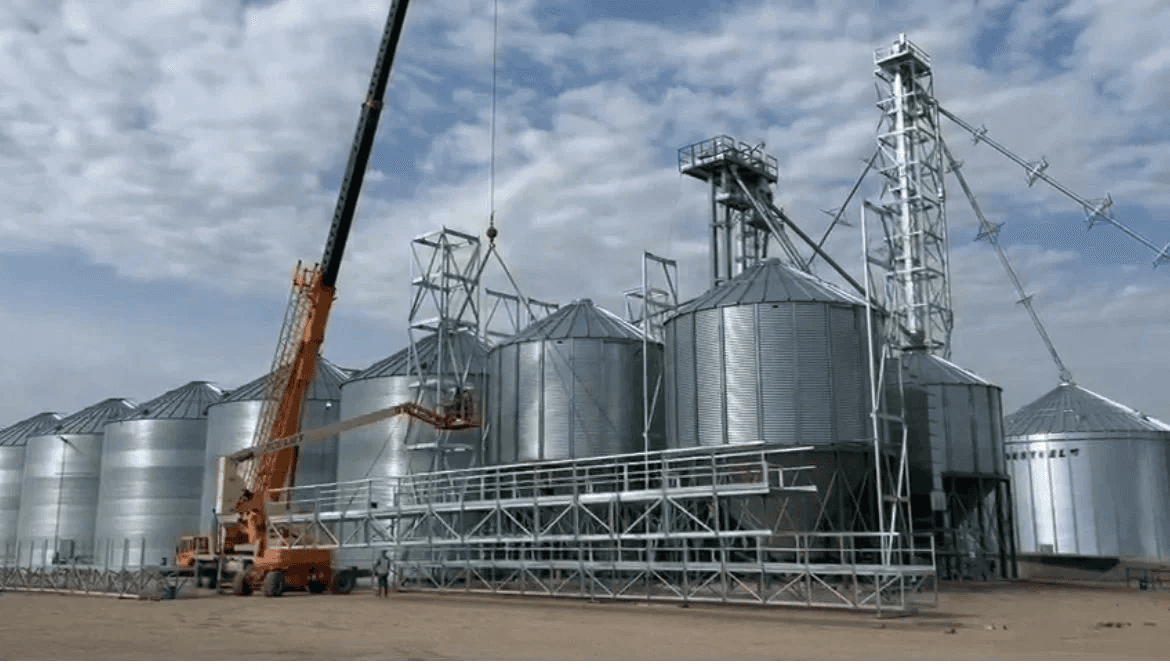

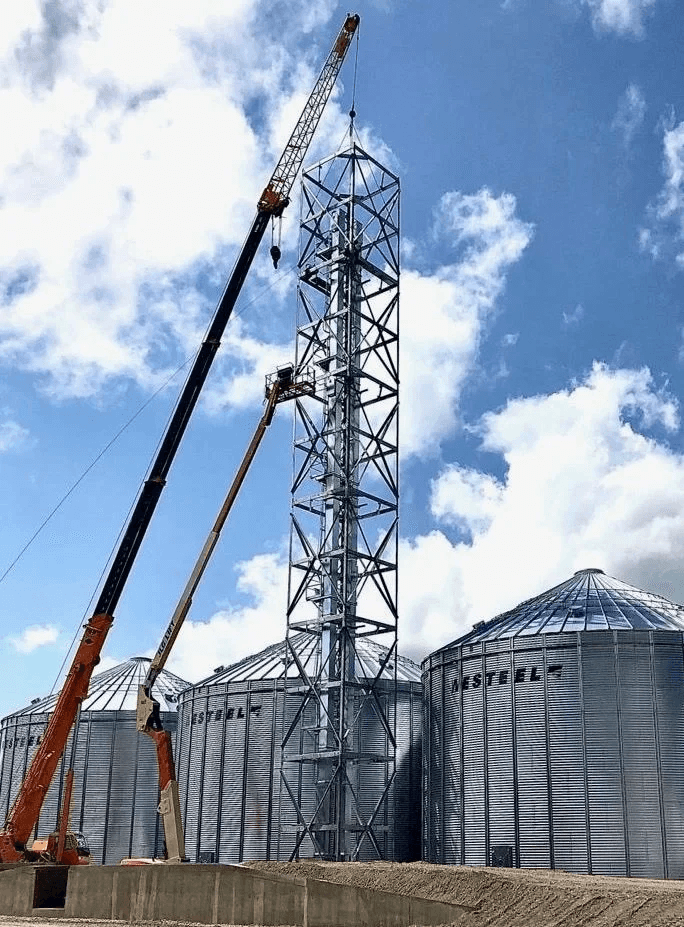

Galvanized sections arrive ready to bolt together, then go up by crane.
- Galvanized. Maximum durability and corrosion resistance.
- Bolt together. Faster installation, lower labour costs, no welding required.
- Various widths. Multiple size options to fit your needs.

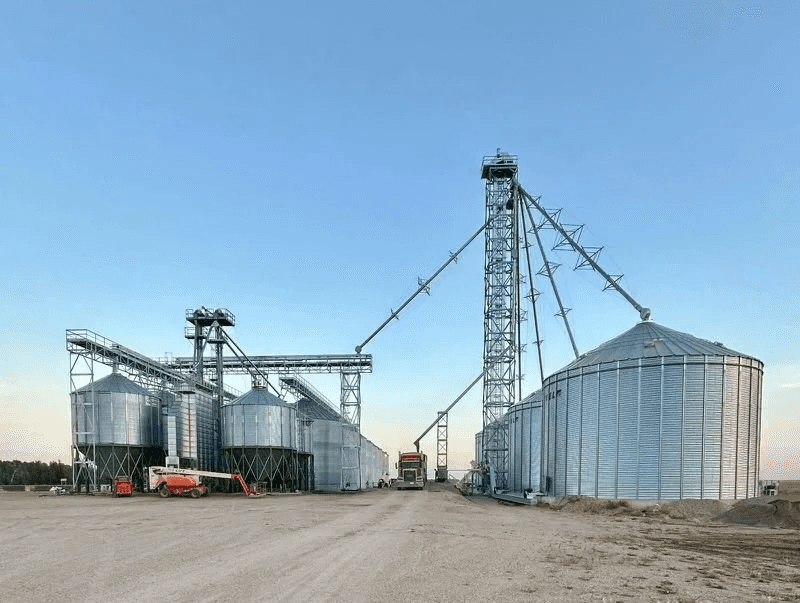

RapiSYSTEMS structure on a grain site
Recent projects
Catwalks

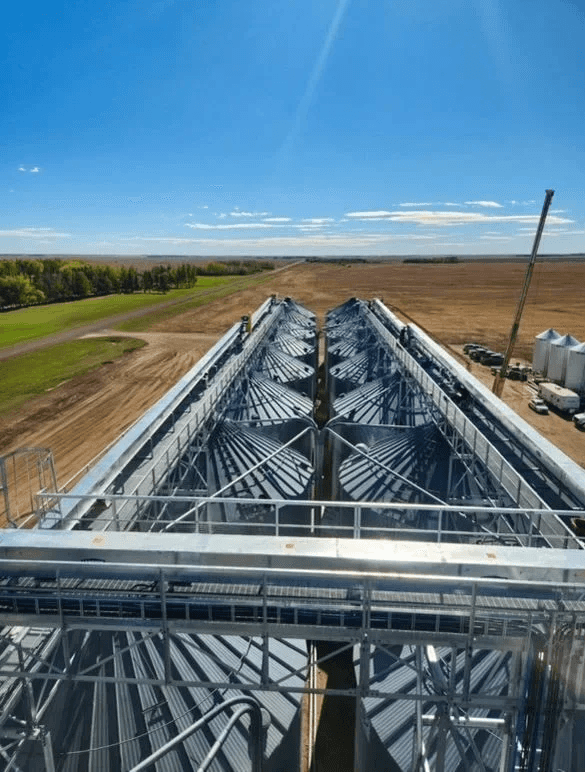

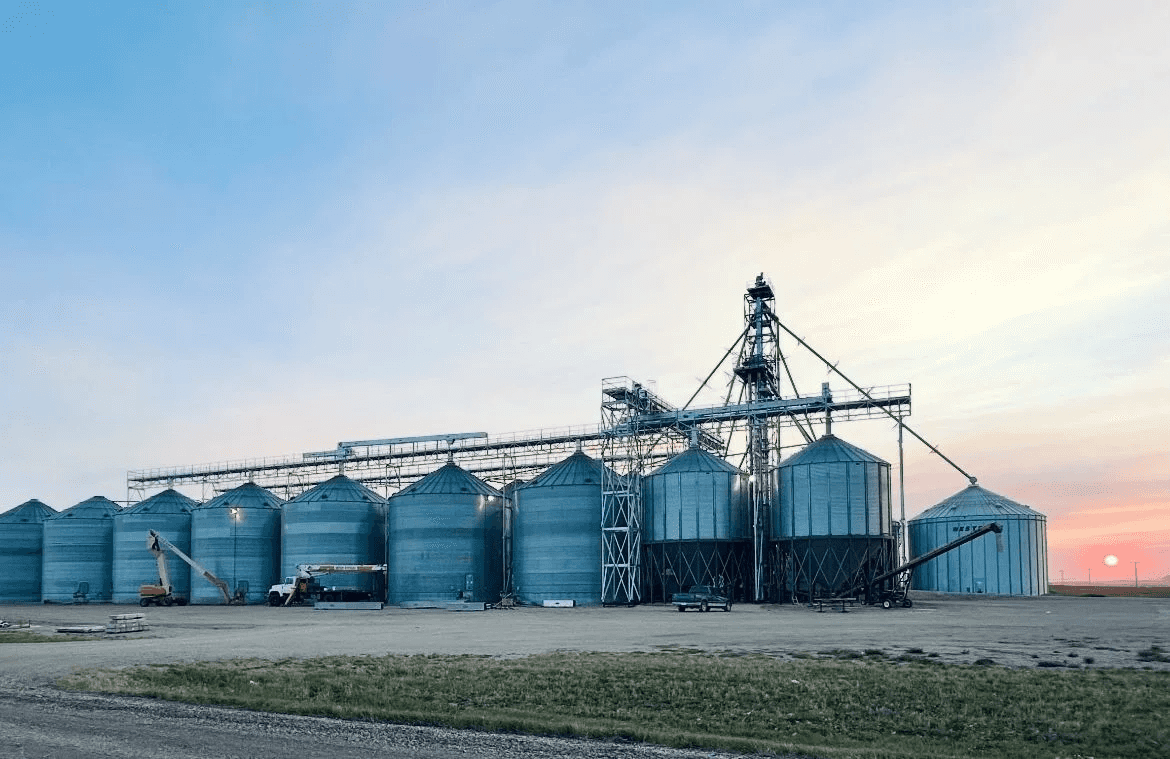

Catwalk run over a bin yard
A long RapiTruss catwalk giving continuous access across a line of bins.
Stairs

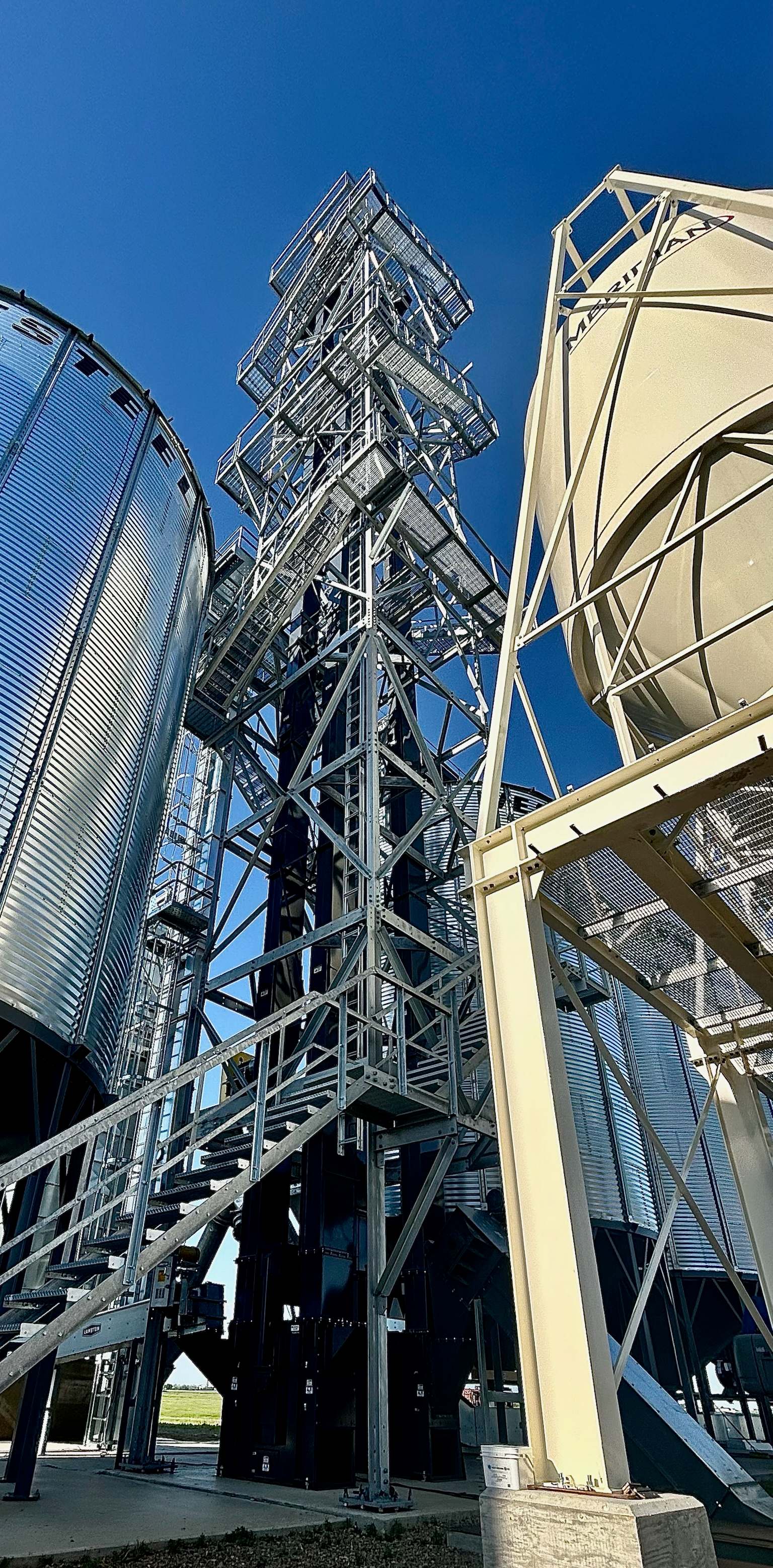

Stair tower and catwalk truss
A RapiTower with wrap-around stairs, with catwalk truss assembled on the ground before lifting.
Griffin Ag Services
Want it installed? Griffin Ag can do the whole job.
Any qualified crew can bolt RapiSYSTEMS together, but the team that developed it is the recommended installer. Griffin Ag Services installs, designs and supplies complete grain handling and seed processing systems across Western Canada.
Installation
Full installs using Griffin Ag's own heavy equipment, manlifts and equipped tool trailers.
Facility design
Systems planned around your current needs and future expansion, with an engineer when required.
Equipment sales
Grain handling equipment from several suppliers at competitive pricing.
Map base: Wikimedia Commons, CC BY-SA 3.0
Proudly made in the Prairie Provinces. Shipped Canada wide.
Sold direct from Tisdale, Saskatchewan and delivered from the prairies to your farm, coast to coast.
Now looking for Canadian retailers
Want to carry RapiSYSTEMS towers, catwalks and stairs? We are building a network of retailers and dealers across Canada.
Planning a tower or catwalk?
Tell us about your bins and equipment. We will size the structure and send a quote.
